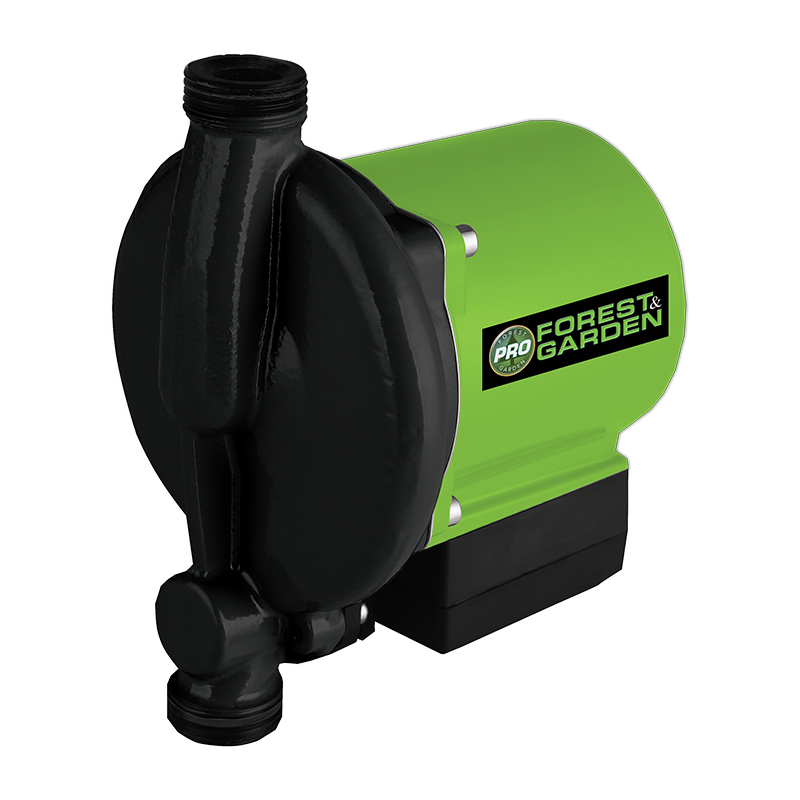

PRESSURE LIFTER

EP 814/25

EP 814/26

EP 814/16

TECHNICAL DATA

VOLTAGE / FREQUENCY 220V ~ 50Hz
220V ~ 60Hz
120V ~ 60Hz
POWER 0,2kW – 1/4HP
INPUT / OUTPUT DIAMETER 1” x 1”
MAX. MANOMETRIC HEIGHT 11,50m – 37ft
EMPTY SPEED n0 = 2850/min (50Hz)
n0 = 3450/min (60Hz)
MAX ENVIRONMENT TEMPERATURE 40°C
FLUID TEMPERATURE RANGE -10°C ~ +110°C
MAX FLOW 50L/min – 1,76CFM
WEIGHT 4,5kg – 9,9lb
Includes:
1 PRESSURE LIFTER
